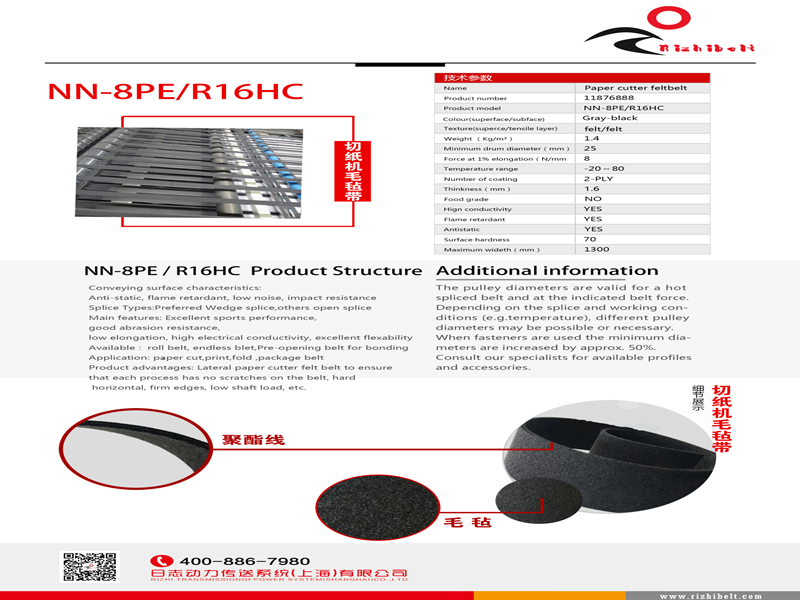

Product data sheet



Name

Paper cutter Grey FeltBelt

Product number

11876888

Product model

NN-8PE/R16HC

Colour(superface/subface)

Gray-black

Texture(superce/tensile layer)

felt/felt

Weight (Kg/m²)

1.4

Minimum drum diameter(mm)

25

Force at 1% elongation(N/mm)

8

Temperature range

―20℃~80℃

Number of coating

2-PLY

Thinkness(mm)

1.6

Food grade

NO

Hign conductivity

YES

Flame retardant

YES

Antistatic

YES

Surface hardness

70

Maximum wideth(mm)

1300



Conveying surface characteristics



Anti-static, flame retardant, low noise, impact resistance Splice Types:Preferred Wedge splice,others open splice

Main features: Excellent sports performance,

good abrasion resistance,

low elongation, high electrical conductivity, excellent flexability Available : roll belt, endless blet,Pre-opening belt for bonding Application: paper cut,print,fold ,package belt

Product advantages: Lateral paper cutter felt belt to ensure that each process has no scratches on the belt, hard horizontal, firm edges, low shaft load, etc.



Additional Information



The pulley diameters are valid for a hot spliced belt and at the indicated belt force. Depending on the splice and working conditions (e.g.temperature), different pulley diameters may be possible or necessary. When fasteners are used the minimum diameters are increased by approx. 50%. Consult our specialists for available profiles and accessories.



Product Application

Paper cutter Grey FeltBelt Thickness 1.6mm

Size
Color: grey
